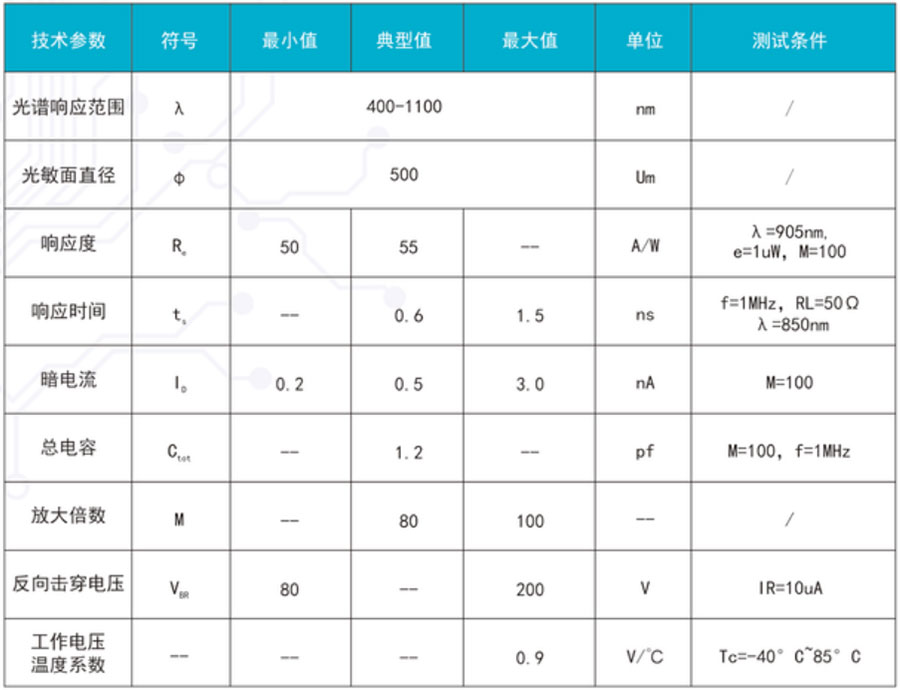

Main photoelectric parameters:
(Ta=22+3°C)

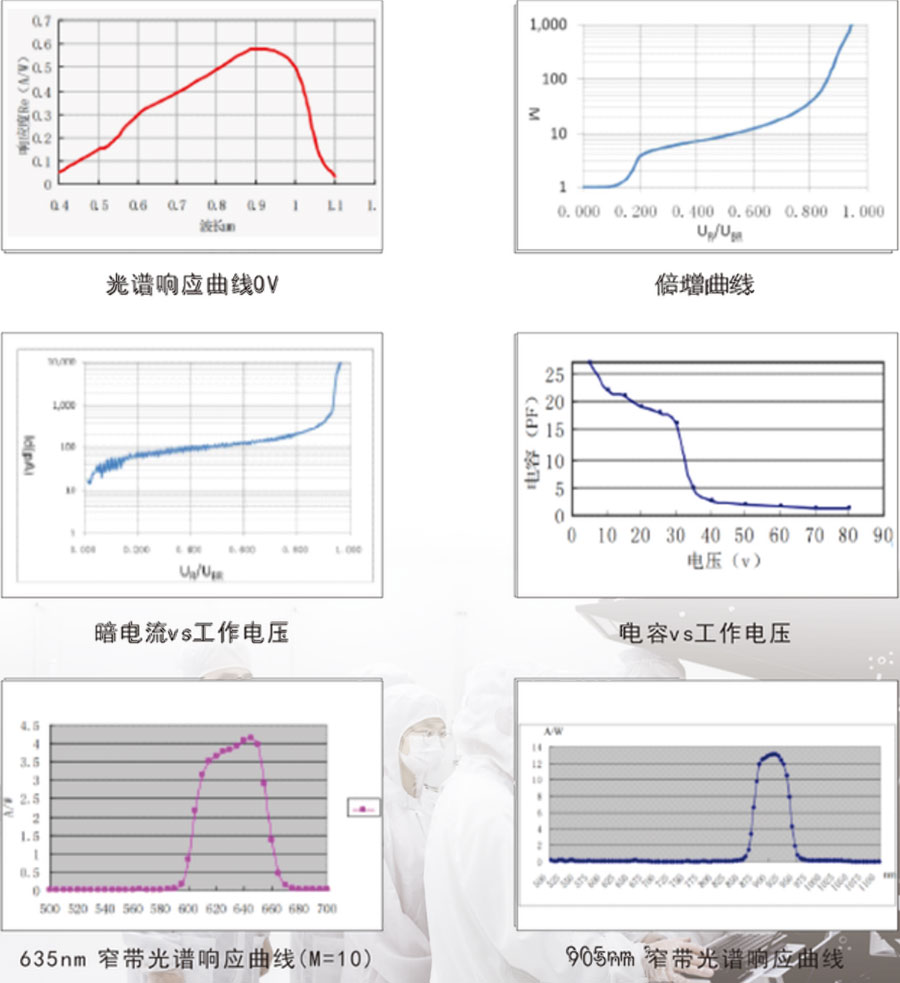

Typical photoelectric parameter curve:
APD TO Package
To46 encapsulation structure.
High speed response, high gain, low junction capacitance, low noise.
The photosensitive surface is 500um.
The response spectral range is optional (400-1100nm, 635nm, 650nm, 905nm).
Optional light window (flat light window/spherical lens light window).
